Pioneer

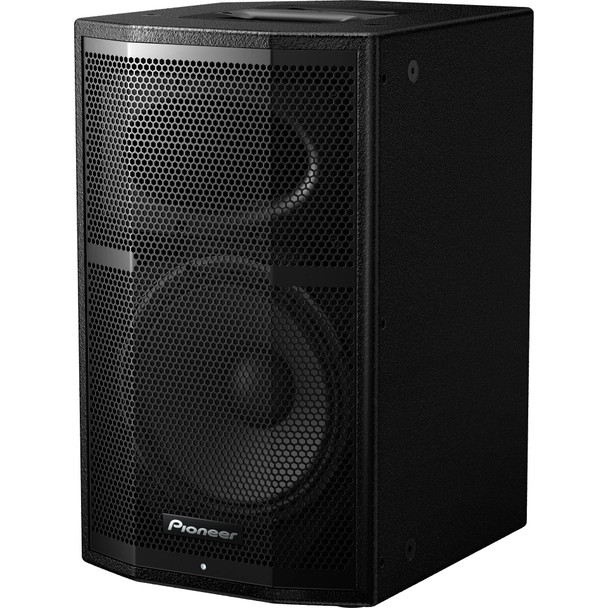

SPEAKER BOX PIONEER 12" XPRS12 (POWERED EACH)

(No reviews yet) Write a Review
SKU:
22765
Shipping:
Calculated at Checkout
On Sale
Now: $287,201
Was: $319,112

Description

The Pioneer XPRS 12 is a 12-inch two-way full range speakers from the XPRS Series. The speakers are enclosed in 15 mm birch plywood cabinets to deliver a natural, dynamic sound. Pioneer’s patented AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs just the standing waves, increasing the low frequency response.

The XPRS12 uses lightweight 12-inch ferrite LF drivers and 1.75-inch titanium diaphragm compression drivers.

Pioneer XPRS 12 Specifications:

  • Speaker Type: 12" 2-way full range, bass reflex,bi-amp, active speaker
  • System characteristic:
    • Frequency Response (–10 dB): 50 Hz to 20 kHz
    • Dispersion (H x V): 90° x 60° (rotatable)
    • Maximum SPL (peak @ 1 m / 1 w): 135 dB
    • Crossover Frequency: 2.0 kHz
  • Amplifier:
    • Amplifier type: Class D
    • Power Rating: 2400 W peak / 1200 W cont. (LF800 W/HF400 W)
    • Input connectors: (2) XLR/TRS Combo (balanced), (2) RCA (unbalanced)
    • Impedance: 10 k Ohms
  • Output connectors:
    • (2) Through output XLR (balanced)
    • (1) Mixed output XLR (balanced)
  • Speaker:
    • LF driver: 12-inch ferrite LF cone driver
    • HF driver: 1.75-inch titanium diaphragm neodymium compression driver
    • Enclosure: 15 mm birch plywood, bass reflex type
    • Finish: Impact-resistant, black semi-matt textured
    • Handle: 2 (on both sides)
    • Pole socket: 35 mm socket (0° / 7° multi-angle)
    • Rigging point: (12) M10
  • Protection:
    • Amplifier Protection: Thermal limiting, over-temperature muting, output overcurrent
    • Driver Protection: DC offset removal, high frequency stationary loud signals, input voltage limiter (Peak/RMS)
    • Power unit Protection: Primary AC mains overvoltage protection, Primary AC mains overcurrent protection
  • Power unit/other:
    • Supported voltages: 100 V (50 Hz / 60 Hz) / 110 V to 240 V (50 Hz / 60 Hz)
    • Power consumption: 167 W
    • Dimensions (W x H x D): 380 x 647 x 398 mm (15 x 25.5 x 15.7 inch)
    • Weight: 23.1kg (50.9 lbs)
