Horn Flare

H14EA 1.4" Throat Exponential Aluminum Horn Flare 1.4" Throat Exponential, Aluminum, 60X40 Dispersion Horn Flare SPECIFICATION Type Exponential Throat Size 1.4", 35.6mm Attachment Method Bolt-on Dispersion 60 X 40 Low Rec. Crossover 600...

APH-85112BO-H - High Frequency Horn High Frequency Horn ABS Horn Exit Throat Size: 2” Bolt-on Fitting Overall Dimensions: 8.5’’(H) x 8.5” (W) x 11.2” (D) Mounting Depth: 10.4”

APH-10610BO-H High Frequency Horn • High Frequency Horn • ABS Horn • Bolt-on Fitting • Exit Throat Size: 2” • Overall Dimensions: 10.4”(H) x 6”(W) x 10.7”(D) • Mounting depth: 10”

The XR1496C has been designed in order to obtain a smooth frequency response maintaining constant coverage and directivity pattern, and avoiding the midrange narrowing effect as well as high frequency beaming problems.With a throat entry of 1.4 inch, the...

The XR1064 is a constant directivity horn with a throat entry of 1 inch. The XR1064 has been developed to reach the optimum performance when it will coupled with one inch exit Eighteen Sound high frequency compression drivers.All XR horn series have been...

NTX-0714SCR Specifications SQUARE HORN 7 1/4" X 7 1/4" • Throat: 1-3/8" (33mm) • Type: Copper thread screw • Mounting Diameter: 147mm x 148mm

CH-6 Coverage Pattern: 60º H x 60º V Throat size: 1.6" Low Frequency Limit: 1000 Hz Mouth Dimensions: 9.0" diameter Overall Dimensions : 10.5 x 10.5 x 5.75(H x W x D) Horn Type: Constant Directivity(conical) Packed Weight: 3 lb (1.36 kg) Packed Length:...

APH-5757 Eye Candy Colors Eye Candy High Frequency Horn  • ABS Horn for Screw on Type Driver • Mount Dimensions: 145(H)x145(W)mm (5.7”x5.7”) • Throat Size: 27mm (1.062”) • Overall Dimensions: 145(H)x145(W)x100(D)mm (5.7”x5.7”x4.3”)

APH-4545 Eye Candy Colors Eye Candy High Frequency Horn  • Plastic Horn • Throat size: 1.375” • Overall Dimensions: 2.3”(H) x 4.5”(W) x 5”(D)

APH-4545-H High Frequency Horn Product Specifications Specifications Reviews • Plastic Horn • Throat size: 1.375” • Overall Dimensions: 2.3”(H) x 4.5”(W) x 5”(D)

APH-3535 Eye Candy Colors Eye Candy High Frequency Horn  • Plastic high frequency horn • Throat size: 1.375” • Overall dimensions: 3.4“ x 3.4” x 2.3“ • Mounting depth: 2” • Metal socket for solid fitting

APH-3535 High Frequency Horn • Plastic high frequency horn • Throat size: 1.375” • Overall dimensions: 3.4“ x 3.4” x 2.3“ • Mounting depth: 2” • Metal socket for solid fitting

APCD-78FR Titanium Compression Driver • 400 Watts Power (P.M.P.O.) • 200 Watts Power (R.M.S.) • Frequency Response: 1000-20000 Hz • Sensitivity: 107 dB • Titanium Diaphragm • 3” Kapton Voice Coil • Impedance: 8 ohms • 156mm x 20mm Ferrite Magnet • 50 Oz...

Pyle PH715 1" Bolt-On Constant Directivity Horn 4-Bolt Material: ABS Resin Nominal Coverage Angle (HxV) 6dB:90 x 40 Cut Off Frequency: 1000 Hz Throat Diameter: 26mm Mounting Flange Diameter: 100mm Mounting Hole Diameter: 6mm Mounting Holes Number:...

Eminence WG-10 High-Frequency Waveguide Eminence WG-10 Overview The WG-10 High-Frequency Waveguide from Eminence is for 1" throat devices and delivers smooth and detailed high frequency reproduction. Sturdy yet lightweight, this bolt-on waveguide...

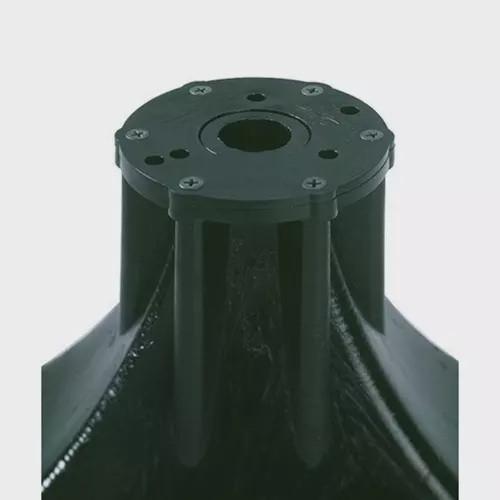

Eminence - H295 - Constant Directivity Horn Flare. 1" CD Horn 90x40° - 305 x 152 mmThe specially developed bi-radial and CD horns are characterized by their particularly precise radiation characteristics. The Adam Hall horns are made of high-quality...

SST1 1" Throat Size Bolt-on Horn Flare Eminence SST1 is a 90°x 40° 1" constant directivity horn with smooth high-frequency reproduction from 1.0kHz and up. Constructed of durable ABS plastic, The SST1 works well for small to medium-sized speaker...

Eminence - H395 - Constant Directivity Horn Flare. Specifications: Type Constant Directivity Throat Size 1", 25.4mm Dispersion 90 x 40 Low Rec. Crossover 1 kHz WxHxD (mm) 395mm x 185mm x 155mm Cut Out 3455 x 1560mm Weight 0...

H 290B 1" Throat Size Bolt-on Horn Flare 1" Throat Size Bolt-on Exponential 90x40 Dispersion Horn Flare SPECIFICATION Type Exponential Throat Size 1", 25.4mm Attachment Method Bolt-on Dispersion 90 x 40 Low Rec. Crossover 1.0 kHz WxHxD...

NTX-6464-WV 6.33” x 6.33" PLASTIC HORN • Frequency Range: 3K~30KHz • Power RMS/Max: 60/120W • Impedance: 4-8 Ohm • Mounting Diameter:    146mm x 85mm

Blastking BPH1400B 2" Throat Bolt-On Plastic Horn Flare 17.75"x10"x7.5" PRODUCT DESCRIPTION Description Specifications: Throat Diameter: 2" (50.8mm) Type: Bolt-On Material: ABS Plastic Sound Dispersion HxV: 60° X 90° Low Frequency Limit: 800...

Screw-On Horn – BPH1150 Product Description 11” x 19” Screw-On HornThroat Diameter: 1″Material: ABS Plastic Additional Information Horn Material ABS Plastic Horn Type Screw-On Throat Diameter 1"

APH-6556 High Frequency Horn Product Specifications • High Frequency Horn Plastic Horn • Throat Size: 1.375” • Overall Dimensions: 5.6” (H) x 5.6” (W) x 7.2” (D) • Mounting Depth: 6.5”

SPECIFICATION Type Exponential Throat Size 1", 25.4mm Attachment Method Screw-on Dispersion 60 x 60 Low Rec. Crossover 1.2 kHz WxHxD (in) 5.59" x 5.59" x 4.38" WxHxD (mm) 142mm x 142mm x 111.3mm Cut Out 3.56 x 3.5", 90.4 x 90...

APH-5757 High Frequency Horn ABS Horn for Bolt on Type Driver • Mount Dimensions: 145(H)x145(W)mm (5.7”x5.7”) • Throat Size: 27mm (1.062”) • Overall Dimensions: 145(H)x145(W)x100(D)mm (5.7”x5.7”x4.3”)

Screw-On Horn – BPH300 10½” x 4¼” Screw-On HornThroat Diameter: 1″Material: ABS Plastic Horn Material ABS Plastic Horn Type Screw-On Throat Diameter 1"

NTX-1450 Specifications iron HORN WITHOUT DRIVER •    Compact Size, flat front •    Aluminum exponential Horn •    50mm (2”) Throat •    45° x 45° nominal Coverage

Eighteensound XT 1464 1.4" Polyurethane CD Horn 60° h x 50° v Min. crossover frequency: 800 Hz Cutout dimensions: 362 x 285 mm Dimensions (W x H x D): 380 x 304 x 257 mm Weight: 1.3 kg Further Information Driver Size 1,4" Width [mm] 380...

Eighteensound XT 1086 Aluminium CD Horn Size: 1" 80° h x 60° v Min. crossover frequency 1.2 kHz Dimensions (W x H x D): 260 x 215 x 120.5 mm Cutout dimensions: 197 x 242 mm 1 kg Further Information Driver Size 1" Width [mm] 260 mm Height...

Eighteen Sound XR1464C The Eighteen Sound XR1464C is a 1.4-inch throat constant directivity horn. It achieves optimal performance when paired with Eighteen Sound compression drivers with 1.4-inch throat output.All the horns of the XR series generate a...

The XR2064C is a constant directivity 2 inch horn. The XR2064C has been developed to reach the optimum performance when coupled to 2 inch exit Eighteen Sound high frequency compression drivers.All XR series horns have been designed in order to reach...

Eighteensound XT 120 Horn 1" Polyurethane CD Horn Dispersion angle (horiz. x vert.): 90° x 60° Min. cutoff frequency: 2 kHz Dimensions (W x H x D): 200 x 150 x 103 mm Cutout dimensions: 165 x 115 mm Weight: 350 g Note: Suitable for 1"...
