Description

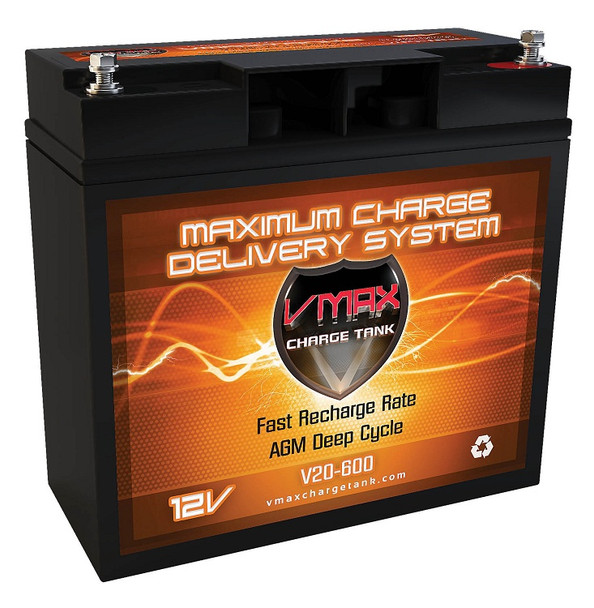

V20-600 Deep Cycle, High performance AGM Battery.
V20-600
| Nominal Voltage | 20Hr Capacity | RC (min) | CCA | MCA |
Terminal Posts | Dimensions | Weight |
Charging Current* |
Charging Voltage |
Float Voltage |
| 12V | 20AH |
40 | 190 | 240 | 6mm (included) |
7"w x 3"d x 6.6"h | 13lb |
1.5A-7A |
14.4-14.9V |
13.5V-13.8V |
Recommended Charging Options:
- AC Chargers: Any Quality Brand AGM- Smart & Microprocessor controlled- charger with the recommended specs above can be used. Battery Charger Guide.
- Alternator: 14V-15V.
- RV Converter: 14V-15V.
- Solar Panel: 35W-110W.
- Wind Turbine: 35W-110W.
- Charge Controller: 2A-30A
* Warning: Do not use a charger with smaller amperage than the recommended Charging Current shown above.
Maintainers should ONLY be used to maintain a fully charged battery but NEVER as a charger.
Operating Temperature Range:
- Discharge: -4~140F
- Charge: 14~140F
- Storage: -4~140F
Temperature Compensation:
- Cycle use: -30mV/C
- Standby use: -20mV/C
UPC: 760921777930
BCI Group Codes*:
Matching Termination: 1/2 U1 (- on L.H.S. & + on R.H.S)
* Matching is based on closest dimensional specifications. Differences in hold downs and termination may require some accommodations and/or the extension of one or both vehicle's battery cables.
