Eminence

SPEAKER EMINENCE 12" IMPERO-12A

(No reviews yet) Write a Review
SKU:
65145
Shipping:
Calculated at Checkout
On Sale
  • SPEAKER EMINENCE 12" IMPERO-12A
  • SPEAKER EMINENCE 12" IMPERO-12A
  • SPEAKER EMINENCE 12" IMPERO-12A
Now: $57,781
Was: $64,201

Description

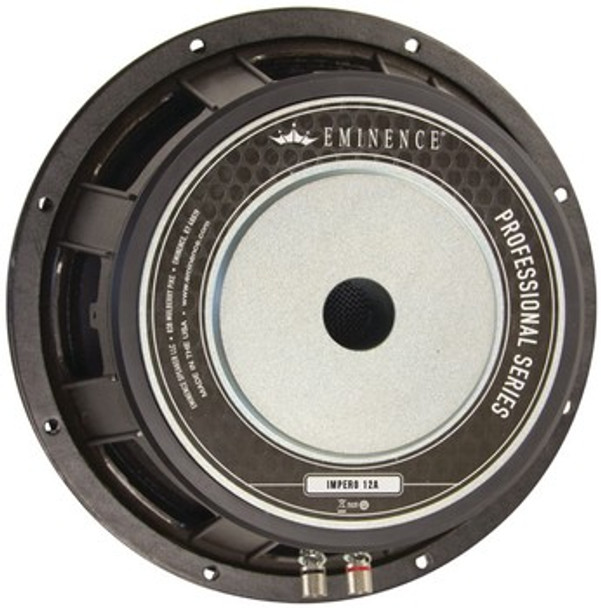

EMINENCE IMPERO 12A 12" HIGH POWER SPEAKER DRIVER

KEY FEATURES

  • Ultra-high power handling capacity guarantees long-term durability
  • 4" diameter copper voice coil on fiberglass former
  • Weather-resistant paper cone and dust cap, treated cloth edge
  • Die cast basket is light yet strong, ready to handle rough travel
  • Massive, optimized motor structure helps move serious volumes of air
  • Smooth response up to 2 kHz makes 2-way system designs easy and effective
  • Hand built in the USA

DESCRIPTION

Eminence's Impero 12A 12" 8 ohm speaker offers 1,100 watts RMS power handling and superb bass response, thanks to its substantial and well-engineered ceramic magnet system.

The Eminence Impero 12A 12" high power pro audio speaker is optimized for use in vented enclosures. Its 1,100 watt continuous power rating is a result of Eminence's extensive experience designing and manufacturing loudspeaker drivers for serious professional use.

This 12" cast frame transducer features a 4" diameter copper voice coil that is wound on a fiberglass former. A large magnet, extended and vented pole piece, bumped back plate, and 1/2" thick x 7-1/2" diameter top plate ensure substantial motor strength, resulting in tremendous bass output.

The Impero 12A's performance is ideal for full-range 2-way top boxes, 2-way boxes over subs, bass guitar boxes, and compact subwoofer speaker systems. Recommended enclosure volume: Vented: 33.98 ~ 118.9 liters / 1.2 ~ 4.2 cu. ft.

SPECIFICATIONS

Nominal Diameter  12"
Moving Mass Of Diaphragm (Mmd) 83
Power Handling (RMS) 1100 Watts
Power Handling (MAX) 2200 Watts
Impedance 8Ω
Frequency Response 56 to 3,000Hz
Sensitivity 93dB 2.83V/1m
Voice Coil Diameter 4"
Sensitivity (1w, 1m, infinite baffle)
SPL1W
93.6
dB
Frequency response
56 - 3000
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
43.0
Hz
Mechanical quality factor
QMS
13.84
Electrical quality factor
QES
0.33
Total quality factor
QTS
0.32

Large signal parameters

Maximum linear excursion
xmax
6.22
mm
Maximum excursion before damage
xlim
12.5
mm
Air volume displaced at xmax
VD
339
cm³
Power handling
P
1100
W
Program power
Pmax
2200
W

Voice Coil

Nominal impedance
Z
8
Ω
DC resistance
RE
5.6
Ω
Inductance (1kHz)
LE
1.46
mH
VC Diameter
102
mm
Winding material
Copper
Former material
Fiberglass

Magnet

Force factor
Bl
19.49
N/A
Motor constant
Bl/√RE
8.25
N/√W
Air gap height
HAG
12.7
mm
Weight
3.09
kg
Material
Ferrite

Diaphragm

Effective diameter
264
mm
Effective area
SD
545
cm²
Moving mass
MMS
83
g
Moving mass (without air load)
MMD
74
g
Material
Water Resistant Paper

Suspensions

Stiffness
KMS
5.88
N/mm
Compliance
CMS
170
µm/N
Equivalent volume to the compliance
VAS
70.2
L
Mechanical resistance
RMS
1.62
N·s/m
Surround material
Cloth

Dimensions

Nominal diameter
12
″
305
mm
Overall diameter
315
mm
Baffle cutout diameter
315
mm
Overall depth
156
mm
Volume occupied by the driver
3.0
L
Net weight
10.98
kg
Frame material
Die Cast Aluminum
