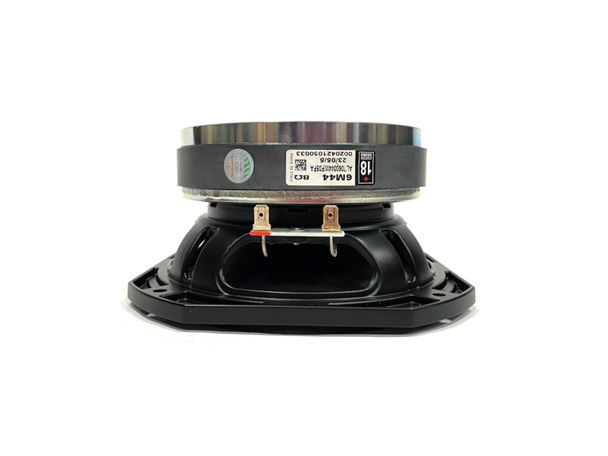

SPEAKER 18SOUND 6" 6M44

The 6M44 is a high power, high output, 6.5" midrange for high level professional use.The excellent sound quality has been achieved as a result of extensive research on mid frequencies intelligibility. The 6M44 has been designed for use as a midrange in both horn and direct radiation, closer or reflex enclosures, as small as 3 lt. The high damping pulp cone, has been designed to achieve the best possible linearity within its

frequency range. The in-house developed cone treatment is a humidity repellent and also dampens the bell mode resonance significantly. The 44 mm CCAW voice coil assembly is wound on a strong fiberglas former to improve force transmission and power handling. The powerful magnet assembly assures high flux concentration. The force factor and power handling are at an optimum level with improved thermal connection and heat dissipation, further increasing power handling and lowering power compression. The demodulating ring technology reduces inductance and improves transient response and phase control in the mid frequencies.
