Description

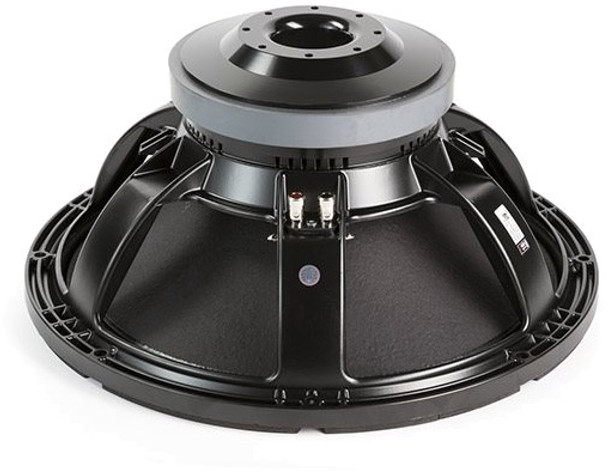

18 "inch (460 mm) speaker, nominal impedance: 8 ohms, AES power: 1,000 watts, program power: 1,400 watts, peak power: 7,000 watts, sensitivity: 99 dB, frequency range: 37 - 4,700 Hz, maximum frequency Recommended: 500 Hz, 4 "inch (100 mm) voice coil of copper wire, weight: 12.9 kg, ferrite magnet.
Bass power.
The 18W1001 speaker can be used as a subwoofer or bass component in either a reflex, bandpass or horn loaded configuration, in high-power arrays or touring speaker systems. This provides clear, linear, distortion-free low-frequency reproduction at very high power levels.
High excursion surround sound and suspension capabilities, in conjunction with DSS (Double Silicon Spider), enable the 18W1001 to achieve high levels of linear travel while maintaining full control of moving mass. The high quality curvilinear cone ensures a smooth response and exceptional force with maximum reliability under high mechanical stress.
The 100mm copper wire voice coil employs ISV (Interleaved Sandwich Voice coil) technology, in which a high-strength fiberglass winder has outer and inner surface windings to achieve a balanced coil with even distribution of mass and motive energy. This results in an extremely linear motor assembly.
Excellent heat dissipation has been achieved by incorporating air channels between the basket and the upper magnetic plate.
Maximum concentration of flux and force factor in the between iron is ensured by a unique shape and design in the top and back plates, which have been researched and designed using our internal magnetic flux resource FEA CAD.
With the increasing use of audio systems at outdoor events, the ability of the 18W1001 speaker to operate in inclement weather conditions or high humidity areas is a key feature. This has been accomplished using a unique cone treatment and magnetic plate process that resists corrosion and makes the cone water repellent.
Quick look
- Nominal diameter.
- Nominal impedance.
- Power.
- Sensitivity.
- Frequency range.
- Compression power.
- Recommended maximum frequency.
- Recommended cabinet volume.
- Maximum excursion peak to peak.
- Voice coil diameter.
- Winder.
- Suspension.
- Cone.
- FS (Resonance Frequency).
- DC resistance.
- SD (effective area).
- QMS (Mechanical Quality Factor).
- QES (Power Quality Factor).
- QTS (Total Quality Factor).
- VAS (Volume of Air Equivalent to CMS).
- MMS (Total mass of the cone).
- BL factor.
- XMAX (Maximum Displacement).
- Moving coil inductance (Le @ 1kHz).
- Efficiency reference 1W @ 1m (half space).
- Overall diameter.
- Mounting holes and bolt.
- Mounting holes diameter.
- Bolt circle diameter.
- Baffle front hole.
- Rear baffle hole.
- Total depth.
- Flange and gasket thickness.
- Net weight.
18 "inches (460 mm).
8 ohms.
AES: 1,000 W.
Program: 1,400 W.
Peak: 7,000 W.
99 dB.
37 - 4,700 Hz.
At -10 dB: 0.6 dB.
At -3 dB: 2.1 dB.
At full power: 3.1 dB.
500 Hz.
120 - 250 lt.
1.42 "inches (36 mm).
4 "inches (100 mm).
Copper.
Rollo-M, poly cotton.
Curvy, paper.
35 Hz.
5.8 ohms.
0.1134 sq.mt.
7.1.
0.24.
0.23.
268 lt.
139 gr.
27.6 Tm.
± 7 mm (± 0.28 ”inches).
2.45 mH.
98.9 dB.
18.18 ”inches (462 mm).
8.
0.33 ”inches (8.5 mm).
17.24 "- 17.32" inches (438 - 440 mm).
Ø 16.38 ”inches (416 mm).
Ø 16.22 ”inches (412 mm).
8.1 ”inches (205.9 mm).
0.75 ”inches (19 mm).
12.9 kg.
| Weight | 12.9 KG |
| Amplified | NOT |
| Application | SUBWOOFER |
| Impedance | 8 OHM |
| Power At 8 Ohms | 1400 W |
| Woofer Inches | 18 IN |
| Frequency range | 37 - 4,700 HZ |
| magnet | FERRITE |
| Sensitivity 1 W @ 1 Meter | 99 DB |
| Peak Power | 7000 |
