18Sound

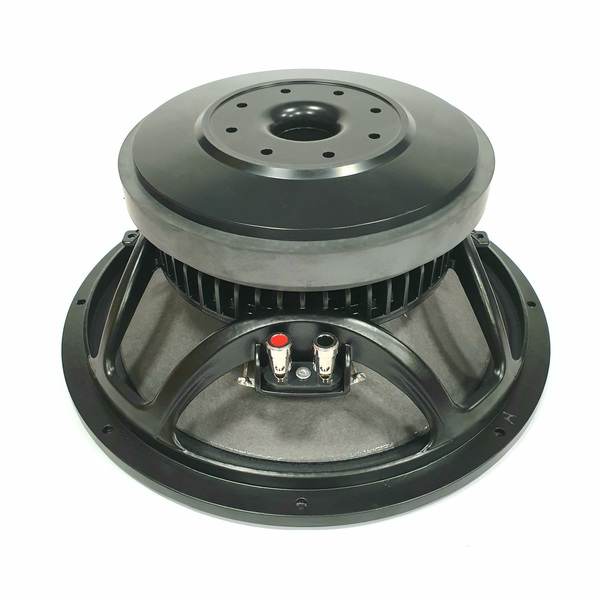

SPEAKER 18SOUND 12" 12MB710

(No reviews yet) Write a Review
SKU:
0135221200297
Shipping:
Calculated at Checkout
On Sale
  • SPEAKER 18SOUND 12" 12MB710
  • SPEAKER 18SOUND 12" 12MB710
  • SPEAKER 18SOUND 12" 12MB710
  • SPEAKER 18SOUND 12" 12MB710
  • SPEAKER 18SOUND 12" 12MB710
Now: $52,412
Was: $65,516

Description

Limited distribution U.S. only. Contact Universal music (U.S. official distributor) for infos
The 12MB710 is a very high sensitivity (100dB 1W/1m) midbass driver with high power handling capabilities. It can be used as either a bass/mid driver in compact 2-way reflex enclosures or as a direct radiating or horn loaded, dedicated midrange driver, in multi-way touring and fixed installation concert and arena systems. Its curvilinear paper cone made from a special high strength wood pulp, has been designed to achieve the best possible linearity within its intended frequency range and to control bell-mode resonances around the cone circumference. The cone is carried by a multiroll suspension formed of a linen-like material, which is more resistant to aging and fatigue than traditional materials. The 75 mm diameter state-of-the-art copper voice coil employs our Interleaved Sandwich Voice coil (ISV) technology. This results in an extremely linear motor assembly with a reduced tendency for eccentric behavior when driven hard. The excellent performance capabilities of this loudspeaker are further enhanced by the Single Demodulating Rings (SDR) designed to dramatically reduce the intermodulation and harmonic distortion and improve transient response. The magnetic structure has been optimized using FEA CAD resource, maximizing the flux density in the voice coil gap and its cooling. An exclusive treatment has been applied to the cone giving it water repellent properties.

SPECIFICATIONS Nominal Impedance Minimum Impedance Nominal Power Handling 1 Continuous Power Handling 2 Sensitivity 3 Frequency Range Voice Coil Diameter Winding Material Winding Depth Magnetic Gap Depth M-roll Curvilinear Ferrite Weather protected 25.0 dm3 (0.88 ft 3) 60 Hz DESIGN Surround Shape Cone Shape Magnet Material Woofer Cone Treatment Recommended Enclosure Recommended Tuning 46 Hz 5.0 Ω 0.2 10.3 0.2 81.0 dm3 (2.86 ft 3) 531.0 cm2 (82.31 in 2) 3.8 % 5.0 mm 6.1 mm 59.0 g 20.5 Txm 0.79 mH 230 Hz PARAMETERS 4 Resonance Frequency Re Qes Qms Qts Vas Sd η₀ Xmax Xvar Mms Bl Le EBP 310 mm (12.2 in) 295 mm (11.61 in) 283.0 mm (11.14 in) 142 mm (5.59 in) 13 mm (0.52 in) 7.8 kg (17.2 lb) 8.3 kg (18.3 lb) MOUNTING AND SHIPPING INFO Overall Diameter Bolt Circle Diameter Baffle Cutout Diameter Depth Flange and Gasket Thickness Net Weight Shipping Weight 1. 2 hours test made with continuous pink noise signal within the range Fs-10Fs. Power calculated on rated minimum impedance. Loudspeaker in free air. 2. Power on Continuous Program is defined as 3 dB greater than the Nominal rating. 3. Applied RMS Voltage is set to 2.83 V for 8 ohms Nominal Impedance. 4. Thiele-Small parameters are measured after a high level 20 Hz sine wave preconditioning test.
