18Sound

HORN DRIVER 18SOUND ND32ST 2" NEO BOLT ON

(No reviews yet) Write a Review
SKU:
39384
Shipping:
Calculated at Checkout
On Sale
  • HORN DRIVER 18SOUND ND32ST 2" NEO BOLT ON
  • HORN DRIVER 18SOUND ND32ST 2" NEO BOLT ON
Now: $84,703
Was: $121,005

Description

The best components.

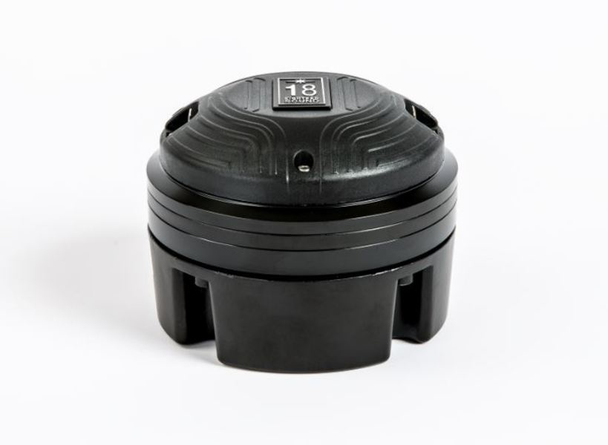

ND32ST is a medium format treble compression driver, with a 3 ″ inch titanium diaphragm, coupled to a 4-slot metal phase corrector and a neodymium ring magnet. It has an AES power of 120 ”and a peak of 240W, a frequency range of 800 - 25,000 Hz and a weight of 2.8 kg.

Quick look

  • Throat diameter.
  • Nominal impedance.
  • Resistance.
  • Minimum impedance.
  • Power.
  • Sensitivity.
  • Frequency range.
  • Recommended crossover.
  • Diaphragm material.
  • Moving coil diameter.
  • Winding material.
  • Magnetic material.
  • Flux density.
  • Total diameter.
  • Mounting holes.
  • Bolt circle diameter.
  • Total depth.
  • Weight.
Throat diameter.

2 ”inches (50 mm).

Nominal impedance.

8 ohms.

Resistance.

4.5 ohms.

Minimum impedance.

6.4 ohms @ 6,500 Hz.

Power.

Continuous: 120W above 1.2 kHz.
Peak: 240W above 1.2kHz.

Sensitivity.

112 dB.

Frequency range.

800 - 25,000 Hz.

Recommended crossover.

1,200 Hz (24dB / Oct).

Diaphragm material.

Pure titanium.

Moving coil diameter.

3 ”inches (75 mm).

Winding material.

CCAW rolled up.

Magnetic material.

Neodymium.

Flux density.

2T.

Total diameter.

120 mm.

Mounting holes.

4 M5 holes.

Bolt circle diameter.

102 mm.

Total depth.

87 mm.

Weight.

2.8 kg.




Weight 2.8 KG
Impedance 8 OHM
Woofer Inches 2 IN
Frequency range 800 - 25,000 HZ.
magnet Neodymium
Sensitivity 1 W @ 1 Meter 112 D DB
