Description

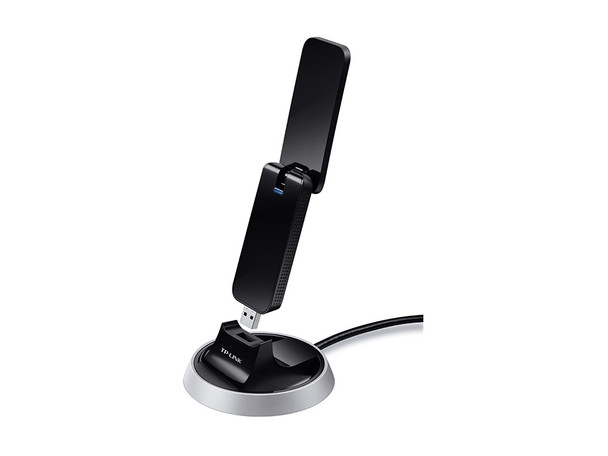

Archer T9UH

AC1900 High Gain Wireless Dual Band USB Adapter

Ultimate Wi-Fi Speed– AC1900 (600Mpbs on 2.4GHz band or 1300Mbps on 5GHz band) wireless speed with the next generation Wi-Fi - 802.11ac*
Dual Band Wireless– 2.4GHz and 5GHz band for flexible connectivity
Ultimate Range – High gain antennas ensure superior range and stability
Beamforming Technology – Delivers a more targeted and highly efficient wireless connections
Super Speed USB 3.0 Port - Up to 10x faster than USB 2.0**
Flexible Deployment - Equipped with a USB 3.0 Cradle for flexible deployment
WPS Button - Easy wireless security encryption at a push of the WPS button
Backward Compatibility – With support for 802.11 a/b/g/n standards***

HARDWARE FEATURES
Interface	USB 3.0
Button	WPS button
Wireless Standards
Dimensions ( W x D x H )	3.96×1.44×0.56in. (100.53×36.6×14.3mm)
Antenna
Antenna Type	Omni Directional

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac, IEEE 802.11a,IEEE 802.11n,IEEE 802.11g, IEEE 802.11b
Frequency	5GHz，2.4GHz
Signal Rate	5GHz： 11ac: Up to 1300Mbps(dynamic) 11n: Up to 450Mbps(dynamic) 11a: Up to 54Mbps(dynamic) 2.4GHz： 11n: Up to 600Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Transmit Power	<20dBm (EIRP)
Wireless Modes	Ad-Hoc / Infrastructure mode
Wireless Security	Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology	DBPSK, DQPSK, CCK, BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

OTHERS
Certification	FCC, RoHS
Package Contents	Wireless Adapter Archer T9UH Resource CD Quick Installation Guide USB Cradle
System Requirements	Windows 10/8.1/8/7/XP (32/64bits), Mac OS 10.9~10.13
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
