APC

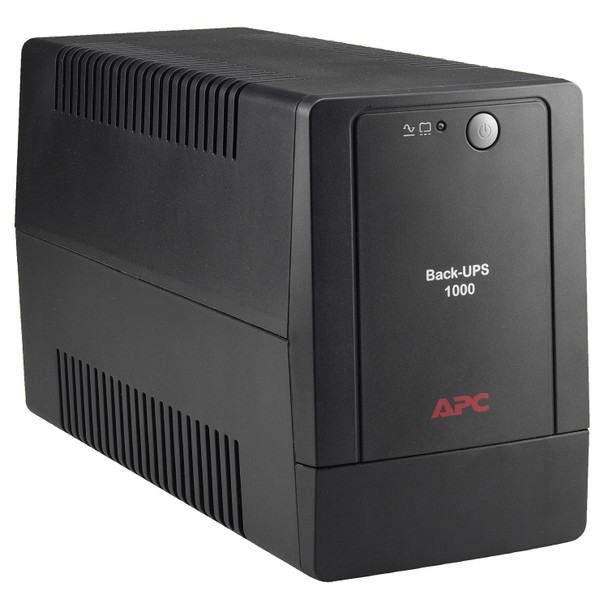

COMPUTER UPS APC BX1000L-LM 1000VA 600W AVR BLACK
(No reviews yet)
Write a Review
- SKU:
- 731304323174
- Shipping:
- Calculated at Checkout
On Sale
Description
APC Back-UPS 1000VA, 120V, AVR, LAM, 6 NEMA outlets
BX1000L-LM
| Lead time | Usually in Stock |
|---|
| Main Input Voltage | 110 V 120 V |
|---|---|
| Rated power in W | 600 W |
| Rated power in VA | 1000 VA |
| output connection type | 6 NEMA 5-15R |
| Cable length | 1.22 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | Installation guide user manual |
|---|---|
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| Height | 18.2 cm |
|---|---|
| Width | 13 cm |
| Depth | 32 cm |
| Net weight | 8.2 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Network frequency | 60 Hz +/- 5 Hz |
|---|---|
| Input voltage limits | 80...138 V line to neutral |
| Maximum input current | 8 A |
| Switching current capacity | 15 A |
| Input Power Factor at Full Load | 0.6 |
| Maximum configurable power in W | 600 W |
|---|---|
| Output frequency | 60 Hz +/- 3 Hz sync to mains |
| Wave type | Stepped approximation to a sinewave |
| Maximum configurable power in VA | 1000 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Product certifications | NOM TÜV |
|---|
| Ambient air temperature for operation | 0…40 °C |
|---|---|
| Relative humidity | 0…95 % |
| Operating altitude | 0...2000 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0.00…4572.00 m |
| Acoustic level | 40 dBA |
| Efficiency | View Efficiency Graph
|
|---|---|
| Number of battery filled slots | 1 |
| Number of battery free slots | 0 |
| Battery recharge time | 6 h |
| Battery charger power | 19 W rated |
| Battery power in VAH | 114 VAh runtime |
| Battery life | 2…4 year(s) |
| Extended runtime | 0 |
| Control panel | LED Status display with on line : on battery |
|---|---|
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge energy rate | 160 J |
|---|
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 19.7 cm |
| Package 1 Width | 39.5 cm |
| Package 1 Length | 28.5 cm |
| Package 1 Weight | 9 kg |
