APC

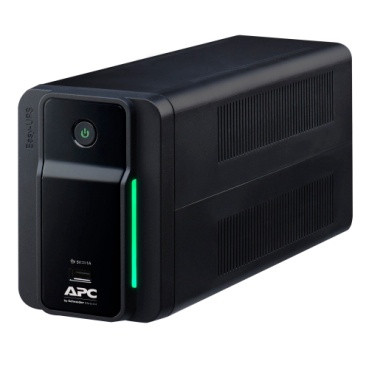

COMPUTER UPS APC BVX700L-LM 700VA 360W AVR BLACK

(No reviews yet) Write a Review
SKU:
198500012436
Shipping:
Calculated at Checkout
On Sale
  • COMPUTER UPS APC BVX700L-LM 700VA 360W AVR BLACK
  • COMPUTER UPS APC BVX700L-LM 700VA 360W AVR BLACK
  • COMPUTER UPS APC BVX700L-LM 700VA 360W AVR BLACK
  • COMPUTER UPS APC BVX700L-LM 700VA 360W AVR BLACK
Now: $17,694
Was: $19,659

Description

APC Back-UPS 700VA, 120V, USB Charging, NEMA Inlets

BVX700LU-LM

Major
Runtime for upload
W
information_stroke
Min-Max: 36-360W
—
Max used capacity
information_stroke
100%
Main Input Voltage 120 V AC 1 phase
Main Output Voltage 120 V AC 1 phase
rated power in W 360W
rated power in VA 700VA
Input Connection Type NEMA 5-15P
output connection type 4 NEMA 5-15R
cable length 1.52m
number of wires 1
Battery Type Sealed lead acid battery
General
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
UPS size WS
Physical
color Black
height 13.8cm
width 9.8cm
depth 31cm
product weight 4.2kg
mounting type Floor
Mounting preference Do not prefer
mounting type In luminary cord
usb supported No
Entrance
Assigned frequency of employment 50/60 Hz +/- 5 Hz ((*)) auto-sensing ((*))
spreader bars 89...145V 120VAC
input protection type Circuit breaker
cos phi 0.51
Exit
Maximum configurable power (watts) 360W
output frequency 50/60 Hz +/- 1 Hz synchronized to the main electrical network
topology Interactive line
waveform type Stepped approximation of a sine wave
the screwdriver slot 97% full charge
Full load runtime 00:00:01 360W
graph display 1
Half load runtime 00:06:00 180W
Maximum configurable power in VA 700VA
transfer time Typical value 6 ms : Maximum value 10 ms
Accordance
product certifications NOM
Environmental
ambient operating temperature 0…40°C
RH 0…95% non-condensing
maximum operating altitude 0...3000m
ambient storage temperature -15…40°C
Storage Relative Humidity 0…95% non-condensing
storage altitude 0…3000m
acoustic level 40 dBA
IP degree of protection IP20
Batteries and autonomy
Execution time View Runtime Graph
action_new_window
Efficiency View Efficiency Graph
action_new_window
Pre-installed batteries 0
Free slots for batteries 0
Typical recharge time 8 a.m.
battery voltage 12V
battery capacity 7.0 Ah
battery life 2…3 year(s)
extendable duration 0
Protection against surges and filtration
Overload Energy Rating (Joules) 350J
Packaging units
Package unit type 1 PCE
Number of units in the package 1 1
Package 1 Height 22.2cm
Package 1 Width 13.5"
Package 1 Length 14.2cm
Package 1 Weight 4.6kg
SCC14 10731304417658
Pallet Unit Stacks Twenty
Pallet Stacks 8
