Description

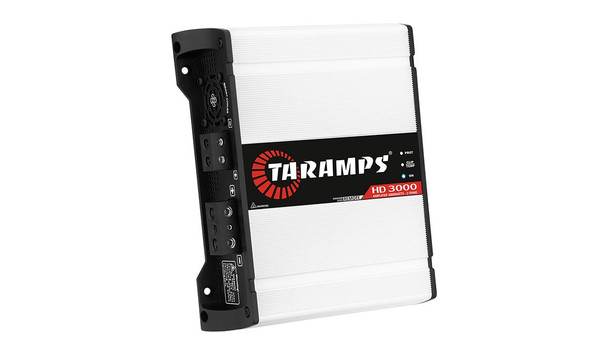

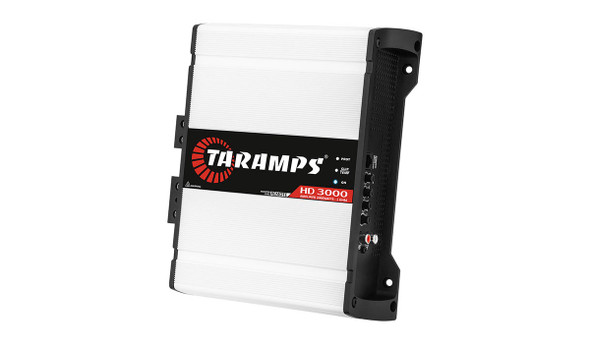

HD 3000 – 2 OHMS
Taramps Amplifier Module Class D (1 Channel 3.000 Watts RMS)
Description
With a maximum power of 3000 Watts RMS, the amplifier module of Taramps HD3000 is mono, impedance of 2 ohms and 1 channel. Perfectly match with all kinds of loudspeakers, drivers and tweeters in the right measure for you!
* This product comes with an M1 Led Monitor
| OPERATION CLASS | Clase D |
|---|---|
| NUMBER OF CHANNELS | 01 |
| MAXIMUM POWER | @12.6 VDC 2 Ohms: 3000 Watts RMS @12.6 VDC 4 Ohms: 2025 Watts RMS @12.6 VDC 8 Ohms: 1140 Watts RMS |
| INPUT SENSITIVITY | 230mV |
| SIGNAL TO NOISE RATIO | 89dB |
| FREQUENCY RESPONSE | 10Hz ~ 20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) | 10Hz ~ 80Hz (-12dB/8ª) Variable |
| CROSSOVER LOW PASS (LPF) | 80Hz ~ Full (-12dB/8ª) Variable |
| BASS BOOST | 0Hz ~ 10.5dB (50Hz) |
| THERMAL MANAGEMENT | Smart Cooler (refrigerador accionado por temperatura o audio, con 3 velocidades) |
| EFFICIENCY | 83% |
| INPUT IMPEDANCE | 18K Ohms |
| OUTPUT IMPEDANCE | 2 Ohms |
| PROTECTION SYSTEM | Corto en la Salida / Tensión de alimentación alta / baja / Protección Térmica. |
| MIN. SUPPLY VOLTAGE | 9 VDC |
| MAXIMUM POWER SUPPLY VOLTAGE | 16 VDC |
| CONSUMPTION AT REST | 1.7A |
| MAXIMUM MUSIC CONSUMPTION | @12.6VDC: 143.5A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL | @12.6VDC (1KHz): 287A |
| DIMENSIONS (H X W X D) | 9" x 2.56" x 7.32" |
| WEIGHT | 2.0Kg |
| EAN | 7898556840880 |
