18Sound
SPEAKER 18SOUND 6" 6NM410-16ohms / 6ND410-16ohms
(No reviews yet)
Write a Review
- SKU:
- ALT06410WF16N
- Shipping:
- Free Shipping
On Sale
Description
Â
Â
- Impedance: 16 ohms / minimum Nominal Impedance: 8.2 ohms at 25 ° C
- AES Program Power: 180W / Power: 240W / Peak Power: 480W
- Frequency range: 200 ÷ 8000 Hz / Max recomm frequency: 5000 Hz.
- Ideal for medium horn and direct radiation applications
Power Rating: 180W AES
Frequency Response: 200-8kHz
Sensitivity: 102db
Impedance: 16 ohms
Voice Coil: 1.75"
Resonant Frequency: 120 Hz
Weight: 2.76 lbs.
The 6ND410 can be used as a mid-range in both horn and direct radiation, closed or reflex enclosures, as small as 2 liters. The extremely powerful external neodymium magnet assembly assures high flux concentration, low power compression and excellent heat exchange. Consequently, the levels of force factor and power handling are at a top professional level with an optimum power to weight ratio. A consistent heat transfer is guaranteed by the encapsulation of the magnetic structure in the interior of the basket, offering a large contact space between the back plate and the dissipating structure. The curvilinear cone-surround, has been created using computer aided vibrational modeling software to move all undesired bell modes out of the usable frequency range.
Related Products
Related Products
On Sale
SPEAKER 18SOUND 6" 6NMB900 NEO 8OHMS
18Sound
Now:
$39,216
Was:
$49,020
The 6NMB900 is the evolution of the 6NMB420 neodymium midbass speaker. This new 6.5 inch neodymium midbass transducer has been designed for mid low frequency reproduction in system designs where high...
On Sale
On Sale
SPEAKER 18SOUND 18" 18NTLW5000-4OHMS
18Sound
Now:
$210,235
Was:
$300,338
The 18NTLW5000 is a 18 inch diameter next generation high performance subwoofer, specifically designed for high SPL very low frequency applications in either a reflex, bandpass or horn loaded...
On Sale

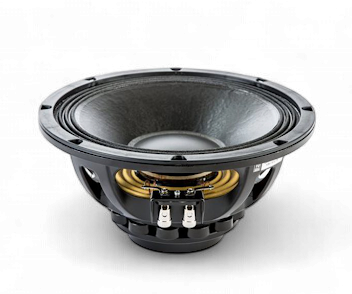

SPEAKER 18SOUND 10" 10NW750-16OHMS
