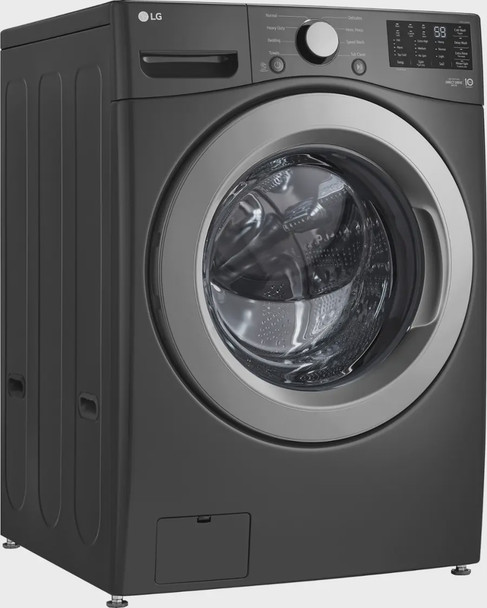

WASHING MACHINE LG WM3470CM 5CF ENGLISH

• 5.0 cu.ft. Mega Capacity lets you fit more in every load
• 6Motion™ technology uses different wash motions for a thorough clean
• With ColdWash™ technology, clean like warm and save like cold
• Direct Drive Motor 10-Year Limited Warranty
• ENERGY STAR® Certified for an efficient clean that saves on water and energy
• Add the LG SideKick® 27" pedestal washer, sold separately, to wash two loads at the same time

Laundry Appliance Capacity
Capacity
5.0 cu. ft.
Summary
Product Color
Middle Black (M)
Dial-A-Cycle™
Yes
Hard Buttons
Yes
Electric Dryer Option
DLE3470M
Gas Dryer Option
DLG3471M
Series
LG
Touch Buttons
Yes
Type
Front Load Washer
Type of Display
LED
Energy
CEE Tier
Tier 2
ENERGY STAR® Most Efficient
Yes
ENERGY STAR® Certified
Yes
IMEF
2.92
IWF
2.9
Washer Programs
No. of Washer Programs
8
Washer Programs
Perm. Press, Bedding, Delicates, Heavy Duty, Normal, Speed
Wash, Towels, Tub Clean
No. of Washer Options
8
Washer Options
Signal, Control Lock, Rinse+Spin, Cold Wash, Delay wash,
Extra Rinse, Prewash, Spin Only
Wash/Rinse Temps
Tap Cold, Cold, Semi Warm, Warm, Hot
No. of Spin Speeds
5
Spin Speeds
Extra High, High, Low, Medium, No Spin
Water Levels
Load Sensing
No. of Soil Levels
3
Fabric Care Features
ColdWash™ Option
Yes
Laundry Appliance Convenience Features
4 Tray Dispenser
Prewash, Main Wash (with liquid detergent cup), Bleach,
Fabric Softener
Auto Suds Removal
Yes
Control Lock
Yes
End of Cycle Signal
Yes
Leveling Legs LoadSense
Yes Yes
True Balance® Anti-Vibration System
Yes
Laundry Appliance ThinQ® Smart Features
ThinQ® Smart Technology
No
SmartDiagnosis™ (v3.0)
Yes
Motor
Axis
Horizontal
Max RPM
1300
Motor Type
Inverter Direct Drive Motor
Materials and Finishes
All Available Colors
Middle Black (M), White (W)
Cabinet
Painted Steel
Control Panel
Plastic
Door / Rim
Glass/Silver Rim
Door Cover
Clear Round Cover
NeveRust™ Stainless Steel Drum
Yes
Top Plate
Painted Steel
Power Source
Washer Electrical Requirements
120V, 10 Amps
Ratings
UL Listed
Washer Power Source Type
Electric
Options/Accessories
LG Sidekick™ Pedestal Washer
NA - not available for Middle Black
Pedestal
WDP6M
Stacking Kit
KSTK4
Dimensions
Carton (WxHxD)
29 1/2" x 42 1/8" x 34 1/4"
Depth with Door Open
57 3/4"
LG Sidekick™ Pedestal Washer (WxHxD)
27" x 14 1/8" x 30 3/4"
Pedestal (WxHxD)
27" x 13 5/8" x 28"
Product (WxHxD)
27" x 39" x 33 1/8"
Weight (Carton)
207.5 lbs
Weight (Product)
191.8 lbs
Weight (Product/Carton)
191.8 / 207.5 lbs.
Warranty & UPC
Direct Drive Motor
10 Years
Drum
UPC
195174048740
