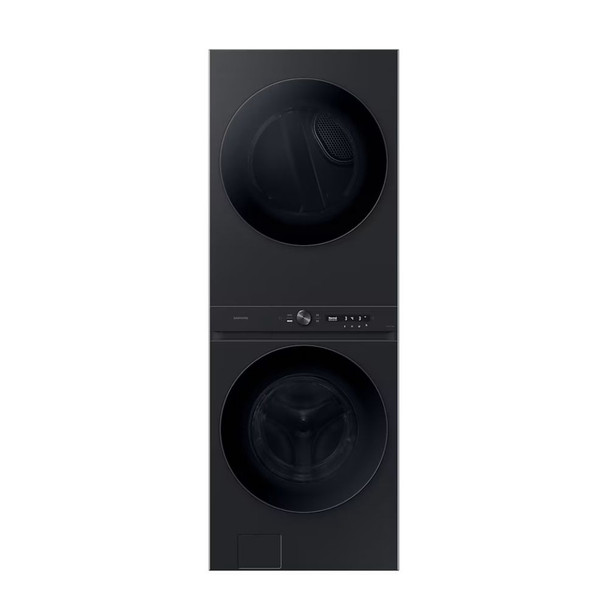

Washer Dryer Combo with Laundry Hub & Bespoke Design and Ultra Capacity WH22DBH570PVAP

Features
Space-saving design. your laundry optimized.

WH9000D is installed in the laundry room.
Fit your home
Laundry Hub & BESPOKE Design
Save space and enhance your home. It vertically integrates a washer and dryer, so it is ideal if space is limited, as it is 81mm lower than a stacked washer/dryer*. It also has one control panel for both, making it easy to use. And its sleek and flat design fits seamlessly in modern kitchens.

White Line
The washer and dryer are vertically installed in the laundry room. After glittering light on the dryer panel and stacking tool, these parts disappear and the washer/dryer set turns into a laundry hub. It is 81mm lower than the washer/dryer set, which simply saves space. A woman is controlling the one panel of Laundry Hub, which is easy to reach. Sleek and stylish Laundry Hubs are seamlessly installed in rooms of various modern designs.
The washer and dryer are vertically installed in the laundry room. After glittering light on the dryer panel and stacking tool, these parts disappear and the washer/dryer set turns into a laundry hub. It is 81mm lower than the washer/dryer set, which simply saves space. A woman is controlling the one panel of Laundry Hub, which is easy to reach. Sleek and stylish Laundry Hubs are seamlessly installed in rooms of various modern designs.
headline play video
* Height comparison: '22 BESPOKE washer/dryer (serial installation) = 1,971mm vs. '24 BESPOKE Laundry Hub = 1,890mm.
Fit in many items
Ultra Capacity
Wash or dry many laundry items at once – saving time and effort. It has an ultra capacity 5.3 cu. ft. washer and 7.6 cu. ft. dryer. You can fit lots of clothes into one load, including big items like a king-sized comforter. So you can wash and dry fewer* loads and enjoy more time for yourself.

White Line
Transparent drums in the laundry hub. It has an ultra-capacity 5.3 cf of washer and 7.6 cf of dryer. Laundry Hub is installed in laundry room and beside Laundry Hub, there are some laundry in a basket.
Transparent drums in the laundry hub. It has an ultra-capacity 5.3 cf of washer and 7.6 cf of dryer. Laundry Hub is installed in laundry room and beside Laundry Hub, there are some laundry in a basket.
headline play video
* Compared to our [WFDV6400A] model.
Intelligent laundry
AI OptiWash™ & AI Optimal Dry
Optimize your washing and drying effortlessly! AI OptiWash intelligently calculates the optimal amount of water and detergent*, detects the fabric** and monitors the level of soiling. AI Optimal Dry intelligently optimizes its drying algorithm to dry items thoroughly*** without overheating.

White Line
AI OptiWash™ operates in 5 steps. The location of the Step 1: wash load sensing, Step 2: water level sensing, Step 3: fabric sensing, Step 4: soil level sensing, and Step 5: detergent level sensing appears on the transparent washer in order. AI Optimal Dry monitors and optimizes the drying process with advanced moisture and temperature sensors. It gives better drying results by increasing the temperature for heavy load, and decreasing the temperature for a light loads - adjusting the temperature according to the laundry weight.
AI OptiWash™ operates in 5 steps. The location of the Step 1: wash load sensing, Step 2: water level sensing, Step 3: fabric sensing, Step 4: soil level sensing, and Step 5: detergent level sensing appears on the transparent washer in order. AI Optimal Dry monitors and optimizes the drying process with advanced moisture and temperature sensors. It gives better drying results by increasing the temperature for heavy load, and decreasing the temperature for a light loads - adjusting the temperature according to the laundry weight.
headline play video
* Based on an AI-created algorithm and internal testing using the AI OptiWash cycle on an IEC 8lb load. A turbidity sensor operates for all weights, while fabric sensing operates for 8lbs and under. Actual results may vary depending on individual use.** To prevent wear, wash like fabrics together. Based on an AI-created algorithm.*** Based on an AI-created algorithm.
Convenience
Automation: Up to 34 loads if you only use detergent. Calibration: Dispense the appropriate amount of detergent. Sensing: Notifies you when the detergent runs out. Auto dispensing of detergent and softener. Inside of Flex Auto Dispenser, use it however you want(softener, specialty/general detergent)
Playing video
Automatic efficiency
Flex Auto Dispense System
Get great washing results with less effort*. A Flex Auto Dispense System dispenses the right amount of detergent and softener for each load. It gives you the flexibility to use various detergents and softeners and it holds enough for up to 20 loads, or up to 34 loads if you only use detergent.

* Actual results may vary depending on individual use.
On top of washing and drying shirts, the arrows surrounding the dryer door show 28 minutes of washing and 30 minutes of drying time. The washing and drying cycle combined takes less than one hour.
Wash & dry in 1 hour
Super Speed Wash & Dry
Get clothes clean and ready to wear in 1 hour. The washer’s Super Speed course washes a full load in 28 minutes*, by helping detergent penetrate faster and speeding up rinsing. The dryer’s Super Speed course dries a load of synthetics in 30 minutes**, by continually optimizing the temperature.

* Tested on the Samsung WHH**DBH7(5)*0**** Super Speed cycle with a DOE (Cotton 50% + Polyester 50%)11lb load.** Tested on the Samsung WHH**DBH7(5)*0****with a DOE (Cotton 50% + Polyester 50%) 8lb load. RMC (Remaining Moisture Content) under 48%, 24℃±2℃, RH (Relative Humidity) 50% ±10%.
The Activewear, Cycle usually used at this time course is working. A woman is exercising alone on Monday morning at 7:58, 8:01 and 8:05 a.m. AI Smart Dial learns your lifestyle habits and suggests a cycle accordingly.
Simply more intuitive
AI Smart Dial
Wash and dry laundry easily and effectively with AI Smart Dial*. It personalizes your washing and drying by suggesting cycles to suit your habits and periodic and seasonal needs** and shows timely information. It offers advice on cycles, planning and troubleshooting on the SmartThings App***.

* AI Smart Dial makes recommendations within 30 days of use based on cycle selections, time selected, and other factors.** Messages with cycle suggestions are displayed on the control panel or a smartphone with the SmartThings App. *** Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.
If debris blocks the air duct inside the dryer, a text “Check the lint filter or vent condition” appears on the display panel.
Playing video
Cleaner, safer vents
Vent Sensor
Get notified if you need to clear a blocked vent, so you can maintain the optimum drying performance. A Vent Sensor continually monitors the condition of the air duct and detects any buildup of lint. It automatically notifies you when it needs a clean or prompts you to check for obstructions.

The Moisture sensor monitors the moisture level of the laundry and control the drying temperature appropriately.
Playing video
Optimized drying
Sensor Dry
Make sure your clothes are properly dried without having to constantly check them. Sensor Dry* automatically optimizes the drying cycle time and temperature. It ensures that your clothes are always evenly dry. Moisture sensors prevent heat damage to your laundry and excessive energy use.

* The Sensor Dry icon turns on when it works on a Sensor Dry course.
The interior light brightly illuminates the inside of the dryer and the woman easily picks up the laundry inside the drum.
Convenient light
Drum Light
Empty your Laundry Hub easily – and never misplace another sock! The internal Drum Light brightly illuminates your laundry and the rest of the drum. So you can quickly check the contents and make sure that you get everything out. Now you won’t overlook even the smallest item in the dark.

A person insert the rack in the dryer. Place the shoes or sweaters on it and dry without damage.
Playing video
Safely dry delicates
Rack Dry
Protect your delicate and special-care items like sneakers and sweaters from high impact tumbling. Simply insert the Drying Rack, place your items on it and everything stays safely in place, while it is dried gently. So there is no loud banging or worry about clothes being stretched.SmartThings
A person is using SmartThings app on a smartphone by connecting Wi-Fi. The SmartThings app makes washing efficient - Laundry planner recommends cycle for user. Auto Cycle Link is automatically enabled for optimal drying course.
Playing video
Connect your life with SmartThings
Wi-Fi Embedded
Use your washer and dryer easily and effectively with the SmartThings App*. The Laundry & Dry Planner optimizes your daily schedule**. And Auto Cycle Link**** selects an optimal drying course after a wash.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required. It stores user data, preferences and usage patterns to suggest the most useful options.** The recommended washed and dried cycle is only based on time and may not be appropriate for the type of fabrics or stain level of the articles being washed.*** A Wi-Fi connection is required at all times, which may increase energy consumption.
A person is using the SmartThings Clothing care and is given AI recommendations. When you scan the bar code of the detergent with SmartThings, the recommended amount of detergent is dispense according to the weight of the laundry.
Playing video
SmartThings Clothing Care
Tailored care. Effortless laundry.
Enjoy a more personalized and efficient laundry experience. SmartThings Clothing Care* analyzes your usage patterns** and external factors to make recommendations. It also creates customized clothing care cycles to suit your lifestyle***. And you can buy laundry supplies using Alexa Smart Reorder****.

* Available on Android and iOS devices. A Wi-Fi connection is required.** Stores user data, preferences and usage patterns to suggest the most useful options.*** The user will be solely responsible for any consequence(s) that may result, including but not limited to any damage or harm caused by incorrect information provided by the user.**** To use Alexa Smart Reorder to buy supplies, you need to link SmartThings to Alexa and activate the Alexa Smart Reorder.
A person is using the SmartThings Energy and checks the energy usage and cost.
SmartThings Energy
Efficient energy use. Smart savings.
Manage your energy usage SmartThings Energy* provides energy efficiency tips. It also monitors the energy consumption of appliances** in real-time and compares it to the previous month. And it alerts you if your monthly targets might be exceeded.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** SmartThings Energy currently works with around 40 Samsung home appliances that are SmartThings enabled. These include washing machines, clothes dryers, dish washers, air conditioners, air purifiers, vacuum cleaners, ovens, hoods, cooktops, microwave, TVs (from June 2022) and energy meters.
A person is using the SmartThings Home care and takes care of the operation of the device.
SmartThings Home care
Smart maintenance. Easy upkeep.
Take care of your washer or dryer easily. SmartThings Home Care* notifies you when parts need replacing and helps troubleshoot problems. It also shows you how to update the software of services and devices**. And it provides useful tips on using your appliance, as well as a user manual.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** Only available in the US.
Next
ftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicator
Hygiene
The washer drum is surrounded by clean water and water jets are cleaning the inside. Close-up shows a door gasket being cleaned.
Cleans & refreshes
Self Clean+
Keep the inside of the washer hygienically clean and fresh. Self Clean+ removes dirt and odor-causing bacteria in the drum by soaking, pulsating and spinning. A powerful water jet and a high spin speed also remove dirt from the door gasket*. And it notifies you when it needs cleaning**.

* Based on internal testing. ** Provides a notification after every 40 cycles.
Steam is dispersed inside the washer and soak clothes in the drum.
Easily clean stains
Steam Wash
Use the power of steam to eliminate stains without pre-treatments. The powerful Steam Wash improves the cleaning quality of your wash. It releases steam from the bottom of the drum, so every item is thoroughly saturated as it rises. This loosens ingrained dirt and ensures even deeper cleaning.

Steam is dispersed inside the dryer and injected into the clothes in the drum. 95% Pollen Remove, Hygiene Care+, Deodorization and Anti-Wrinkle features are described in icons.
Hygienic laundry care
Steam Sanitize+
Make sure clothes are fresh and hygienic. Steam Sanitize+ infuses high temperature heat deep into wet items* and injects steam when drying. It provides hygiene care for your laundry and removes 95% of pollen**. A Multi Steam function also reduces odors and static, and smooths out wrinkles***.

* 6kg wet laundry made of IEC standard fabric with less than 60% moisture content.** Testing based on Samsung internal protocols. Results provided to and interpreted by Intertek. Individual results may vary.*** Based on up to 4 shirts.
The inside of Stainless steel drum of dryer.
Durable & sanitary
Stainless Steel Drum
Enhance your drying performance and prevent clothes from getting damaged with a Stainless Steel Drum. Its durable, sanitary and heat-resistant stainless steel lasts longer, stays cleaner and enhances the drying efficiency. It won’t chip, scratch, rust or discolor, so it can’t damage clothes.

An text “Clean filter before use” appears on the display panel as the Lint Filter at the dryer entry is full of dust.
Alerts to check lint
Lint Filter Alert
Stop worrying that lint and fluff will block the dryer’s air intake and hinder its performance. When you turn on the dryer, the LCD display shows the Lint Filter Alert to remind you to check if it needs cleaning. So you can remove any lint in the air duct and enjoy a consistent performance.

Next
ftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicator
Efficiency
The AI ​​Energy Mode for Washer is activated by checking the mode button to 'On' and selecting the device you want to run on your smartphone. AI Energy mode reduces energy consumption over 35% more than the small load cycle temp. ‘hot’.
Smart energy savings
[Washer] SmartThings AI Energy mode
Monitor and reduce your energy use. AI Energy mode* lets you easily check the power consumption and estimates your electricity bill. For certain cycles**, it reduces energy use by over 35%*** with the same washing performance****, by reducing the use of a heater and increasing the cycle time.

* Available on Android and iOS devices. A Wi-Fi connection and a Samsung account are required.** Can be applied on AI OptiWash, Super Speed, Small Load, Towels, Heavy Duty, Power Rinse cycle only when the selected washing temperature is 'hot'.*** Based on internal testing on the WF8900B model with IEC 8lb load except for Small Load cycle (IEC 4lb load). Results may vary depending on the actual usage conditions.**** It may reduce the washing performance on an AI OptiWash cycle with light laundry to support fabric care.
The washing machine motor has a 20-year warranty on Digital Inverter Motor.
Durable & efficient motor
Digital Inverter Technology
Purchase with confidence any Samsung Washer model with a Digital Inverter Motor and receive a 20 year warranty** on the motor.

* As of 13/10/2023**20-year warranty is limited to the Digital Inverter Motor of washers purchased on 7/1/2022 or later. A purchase receipt indicating the purchase date is required for a claim. Additional restrictions and limitations apply, see warranty for details.
The washing machine is standing and Energy Star logo is on the side. It is certified in 2023 and can be find at www.energystar.gov. Icons means Real-World Impacts and Economic Impacts.
Certified efficiency
ENERGY STAR® Certified
The Laundry Hub washer and dryer is ENERGY STAR® certified. So it is proven to use less power, without sacrificing performance or functionality.

Next
ftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicatorftd16_interactive multi feature-product detail-indicator
How to measure

Illustration shows the WH9000D’s dimensions from the front, side, and top. Detail size of WH9000D is measured 686mm in width, 1,890mm in height, and 875mm in depth. 25mm of space is required to between WH9000D and both walls and ceilings. When the door in the front is opened, it measures 1,420mm in total height. WH9000D must be installed depth front from to rear wall 50mm.
Specifications
Collapse all
Overview
Washing Capacity

22.0 kg

Net Dimension (WxHxD)

686 x 1890 x 796 mm

Net Weight

145 kg

Washing Capacity
Washing Capacity

22.0 kg

Drying Capacity
Drying Capacity

22.0 kg

Design
Body color

Brushed Black

Door

Black Deco+Glass

Panel Display

Mono LCD + LED

Washer Feature
Auto Dispense

Yes

AI OptiWash

Yes

Super Speed

Yes

Steam

Yes

Smart Control

Yes

Child Lock

Yes

Self Clean+

Yes

Interior Drum Light

Yes

Internal Heater

Yes

Motor

DD

Spin Speed

1200 rpm

Delay End

Yes

VRT

VRT Plus

Progress Indicator

Yes

Number of Soil Level

5 EA

Number of Spin Level

5 EA

Number of Temp. Level

5 EA

Number of Cycle

25 EA

Number of Option

18 EA

Cycle List

Normal, AI OptiWash, SuperSpeed, Heavy Duty, Bedding, Perm Press, Delicates, Activewear, Wool, Towels, Eco Cold, Rinse+Spin, Self Clean+, Small Load, Colors, Spin Only, Denim, Steam Sanitize, Steam Allergen, Steam Normal, Power Steam, Steam Whites, Steam Bulky, Power Rinse, Outdoor

Option List

Pre Soak, Extra Rinse, My Cycles, Delay End, Smart Control, SuperSpeed, Drum Light, Child Lock, Dispenser 1, Dispenser 2, Pump Clean, AI Pattern, Calibration, Self Diagnosis, Volume, Language, Wi-Fi, Factory Reset

Dryer Feature
Super Speed

Yes

Smart Control

Yes

Child Lock

Yes

Interior Drum Light

Yes

Drying Rack

Yes

Filter Check Indicator

Yes

Mixed Load Bell / Damp Alert

Yes

My Cycles

Yes

Vent Exhaust (Electric/Gas)

2 ways

Wrinkle Prevent

Yes

Progress Indicator

Yes

Number of Drying Level

5 EA

Number of Temp. Level

5 EA

Number of Time Level

9 EA

Number of Cycle

17 EA

Number of Option

13 EA

Cycle List

Super Speed, eco Normal, Normal, Heavy Duty, Towels, Perm Press, Activewear, Bedding, Delicates, Wool, Sanitize, Shirts, Denim, Time Dry, Air Fluff, Quick Dry, Rack Dry

Option List

Damp Alert, Wrinkle Prevent, My Cycles, Smart Contol, Eco Dry, Drum Light, Child Lock, Volume, AI Pattern, Wi-Fi, Language, Vent Blockage Test, Factory Reset

Physical specification
Net Dimension (WxHxD)

686 x 1890 x 796 mm

Net Weight

145 kg

Gross Dimension (WxHxD)

746 x 2080 x 866 mm

Gross Weight

150 kg

Washer Voltage/Frequency

120V / 60Hz

Dryer Voltage/Frequency

120V / 60Hz

Washer Drum Material

Stainless Steel

Dryer Drum Material

Powder Coat (Gray)

Power Resource

Gas

Smart
WiFi Embedded

Yes

App Connectivity
SmartThings App Support

Yes
