Eminence

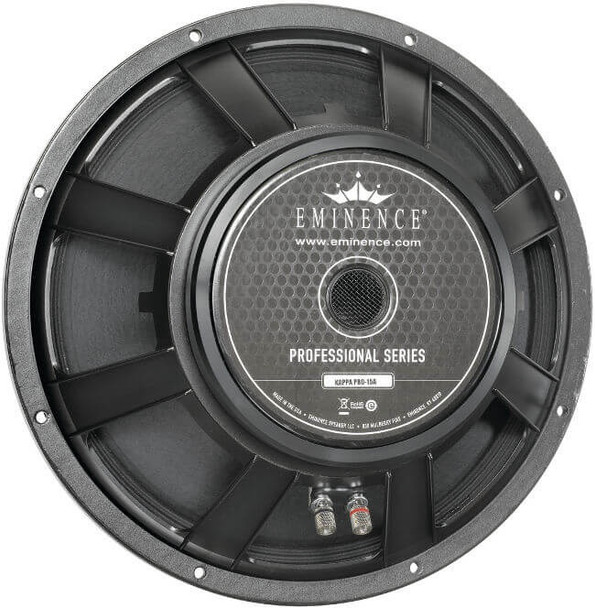

SPEAKER EMINENCE 15" KAPPA-PRO15A
- SKU:
- 19366
- MPN:
- 0adfd74a-1584-11ea-ef2a-3d443ae1425e
- Shipping:
- Calculated at Checkout
Description
Eminence Kappa Pro-15A - 8 ohm 15" 500W Pro Audio Woofer
Eminence Kappa Pro-15A 15" 500 Watts RMS 8 Ohm Speaker / Woofer / Driver
The Eminence KAPPA PRO-15A Mid-Bass Loudspeaker Driver is part of their Professional Series and is designed to install into custom made or prefabricated speaker cabinets that will accommodate a 15" (381mm) diameter mid-range driver.
The speaker will deliver up to 500 Watts RMS of power at 8 ohms and will adequately reproduce vocals, live musical performances, recorded music and other audio signals in professional sound reinforcement applications. Some of the many applications include sound reinforcement speakers for DJs, musicians, venues and nightclubs, stage monitors, and much more.
Recommended for professional audio in a vented mid-bass or vented bass enclosure. Also well suited for bass guitar
15" (381mm) driver for cabinet installation
1000W (program) of power at 8 ohms
80 oz magnet and 3" (76.2mm) voice coil
| Specification | |
| Nominal Basket Diameter | 15", 381 mm |
| Nominal Impedance* | 8 Ω |
| Power Rating* | |
| Program Power | 1000 W |
| Watts | 500 W |
| Resonance | 47 Hz |
| Usable Frequency Range | 46 Hz - 4 kHz |
| Sensitivity* | 101 dB |
| Magnet Weight | 80 oz. |
| Gap Height | 0.37", 9.5 mm |
| Voice Coil Diameter | 3", 76 mm |
| Thiele & Small Parameters | |
| Resonant Frequency (fs) | 47 Hz |
| DC Resistance (Re) | 5.23 Ω |
| Coil Inductance (Le) | 1.01m H |
| Mechanical Q (Qms) | 8.01 |
| Electromagnetic Q (Qes) | 0.4 |
| Total Q (Qts) | 0.38 |
| Compliance Equivalent Volume (Vas) | 167.7 liters / 5.92 cu.ft. |
| Peak Diaphragm Displacement Volume (Vd) | 274 cc |
| Mechanical Compliance of Suspension (Cms) | 0.16 mm/N |
| BL Product (BL) | 16.6 T-M |
| Diaphragm Mass Inc. Airload (MMs) | 72 grams |
| Efficiency Bandwidth Product (EBP) | 118 |
| Maximum Linear Excursion (Xmax) | 3.2 mm |
| Surface Area of Cone (Sd) | 856.3 cm2 |
| Maximum Mechanical Limit (Xlim) | 13.2 mm |
| Mounting Information | |
| Recommended Enclosure Volume | |
| Sealed | N/a |
| Vented | 54-184 liters / 1.9-6.5 cu.ft. |
| Driver Volume Displaced | 0.138 cu.ft. / 3.92 liters |
| Overall Diameter | 15.32", 389.1 mm |
| Baffle Hole Diameter | 14", 355.6 mm |
| Front Sealing Gasket | Yes |
| Rear Sealing Gasket | Yes |
| Mounting Holes Diameter | 0.28", 7.1mm |
| Mounting Holes B.C.D. | 14.56", 369.8mm |
| Depth | 6.06", 153.9 mm |
| Net Weight | 16.9 lbs, 7.67 kg |
| Shipping Weight | 19.5 lbs, 8.85 kgs |
| Materials of Construction | |
| Coil Construction | Aluminum voice coil |
| Coil Former | Polyimide former |
| Magnet Composition | Ferrite magnet |
| Core Details | Vented core |
| Â | Â |
| Basket Materials | Die-cast aluminum basket |
| Cone Composition | Paper cone |
| Cone Edge Composition | Cloth cone edge |
| Dust Cap Composition | Solid composition paper dust cap |
