Wall fan (18in)

AB-7297WM (Q)

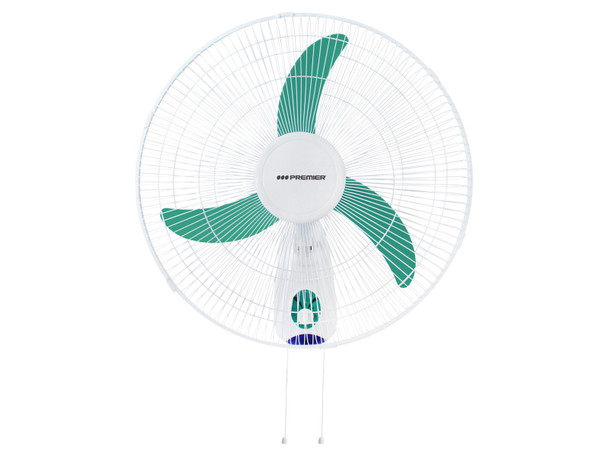

NAME: 18 ”WALL FAN

REFERENCE: AB-7297WM (Q)

COLOR: GREEN

VOLTAGE : AC110V / 60HZ

FUNCTIONS:

- WITH 3-WING PLASTIC BLADE

- WITH SWITCH CONTROLLER, 3 SPEEDS, SWITCH (0, 1, 2,3)

- WITH REMOVABLE ROPE FUNCTION (LENGTH 29CM)

- MOTOR WITH FUSE PROTECTION

FAN

FEATURE: 18 INCH WALL FAN

- WITH 3-WINGS PLASTIC BLADE

- WITH SWITCH CONTROLLER, 3 SPEEDS, SWITCH (0, 1, 2,3)

- WITH PULLING ROPE FUNCTION (LENGTH 29CM)

- WITHOUT TIMER

- LEFT AND RIGHT SWING 60 ° ~ 70 °, WITH CONTROL BUTTOM. TILT ANGLE BELOW 10 ° -

[* MUST USE TUNING KNOB TO LOCK THE ANGLE ADJUSTMENT OF FAN HEAD.]

- BOTTOM SHELL SIZE: 24 * 11.2CM, NET COVER DIAMETER: 50.3CM, 135 NET CABLES

- FAN BLADE THICKNESS: 2 ~ 2.4MM, WEIGHT: 90G,

- FAN BLADE IS PLASTIC, 17.6 "FAN BLADE, FAN FRONT NET WIRE DIAMETER: 1.6MM (WITH COATING), BACK NET WIRE DIAMETER: 1.2MM

- THE WEIGHT OF THE FRONT AND BACK NETS: 970G,

- THE HEIGHT OF THE FRONT NET 88MM

- THE HEIGHT OF THE REAR NET IS 58MM

- THE INTERVAL BETWEEN THE BRACKETS 8 ~ 9MM,

- THE HOOK PIECE T IS 0.9MM

- WITH 5 PCS CLIPS [FREE NET] AROUND THE GRILL.

- MOTOR WITH FUSE PROTECTION

MATERIAL:

MATERIAL FOR FAN BLADE: PLASTIC MATERIAL FOR NECK JOINT: PP MATERIAL FOR MOTOR COVER PP MATERIAL FOR FRONT & BACK NET): PP

COLOR AS BELOW

- MAIN COLOR IN WHITE

- FAN BLADE IN GREEN COLOR

- FRONT AND BACK GRILL IN WHITE

- FRONT BRAND BOARD IN WHITE

- PANEL IN GREEN COLOR, MARKED 0.1,2,3

- MOTOR COVER WHITE

- NECK JOINT IN WHITE

ALL DATA AS PER EV SAMPLE TEST:

POWER: 50 +/- 5W WATTS (AROUND)

MOTOR IN COPPER COATING ALUMINUM WIRE, SIZE: 71 (L) X71 (W) X20 (H) MM WITH FUSE

MOTOR ROTATION SPEED (WITH LOADING BLADE): AROUND 1250 ± 50RPM

WIND SPEED ACCORDING TO THE EV SAMPLE

VOLTAGE: AC110V / 60HZ

CABLE: 2 * 0.5MM² WITH 2 FLAT PINL PLUG (ONE BIG) L = 145CM (EXCLUDING PLUG)

COLOR: GREEN VOLTAGE: AC110V / 60HZ

* CARTON BOX BARCODE: 7453064725892 (GIFT BOX)
